18mm Mini Incremental Encoder Output Type NPN 360ppr 8mm Shaft Rotary

Name: 18mm Mini Incremental Encoder Output Type NPN 360ppr 8mm Shaft Rotary
Brand: HENGXIANG
Price: 1 USD

China 18mm Mini Incremental Encoder Output Type NPN 360ppr 8mm Shaft Rotary wholesale

Brand Name : HENGXIANG

Model Number : K18

Certification : CE,ISO9001

Place of Origin : Shanghai,China

MOQ : 1Pcs

Price : Consult us

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100K pieces per year

Delivery Time : 3-5 working days for sample order, 7-15 working days for mass order

Packaging Details : each 1 piece was packed into single carton box

Application : Subminiature motor, small instrument

Outlet type : Radial cable/Axial cable

Phase : A/AB/ABZ

Output mode : N(OC, low level effective)/NH(OC, high level effective)

Resolution : 250ppr;256ppr;360ppr;400ppr;500ppr;512ppr;720ppr;800ppr;1000ppr;1024ppr;1440ppr;1600ppr

Protection grade : IP50

Supply voltage : DC5V; DC8-30V

Shaft diameter : 2.5mm(through hole; blind hole)

Contact Now

18mm output type NPN 360ppr 8mm shaft rotary Low cost

1. Feature: Mini incremental encoder, hollow shaft, easy to install

2. Application: Subminiature motor, small instrument for automation control.

3. Important parameters: 18mm external dia, thickness 15.3mm, hollow/blind shaft 2.5mm, resolution max 1600 ppr, supply voltage DC5V; DC8-30V, protection grade IP50, cable length 150mm

Product Paramenters

Items	Basic parameters
Brand	HENGXIANG
Encoder type	Incremental encoder
External diameter	18mm
Thickness	15.3mm
Installation dimension	R11mm, spring plate 18T22
Hollow shaft diameter	2.5mm
Resolution	250;256;360;400;500;512；720；800；1000;1024；1440;1600
Output phase	Phase A,B,Z
Supply voltage	DC5V ; DC8-30V
Outlettype	Cable out from side
Outlettype	Cable out from back
Output mode	Collector open circuit output(NPN &PNP)
Protection grade	IP50
Cable length	1M (cable length could be added appropriately by
Cable length	require, but it need payment individually)
Consumption current	50mA MAX
Top response frenquency	100KHZ
Rise/ Fall time	100nsec Max
starting torque	less than 5x 10-4 N.m
Intertia moment	less than 0.3x 10-6kg.m2
Shaft load	Radial 2N; Axial 2N
Top REV	3000r rpm
Environmental temperature	Operating:-10 ～+70°；storage:-15 ～+75°
Enviromental humidity	Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)	Amplitude 0.75mm,10-50Hz,1 hours for three axis individually
Sock(endure)	49m/s2 ,three times for X,Y,Z direction individually
Shaft Material	Stainless steel
Shell Material	aluminium alloy
Cable length	150mm
Certification	CE
package	Carton box
Net weight	About 20g (with package)

Products Description

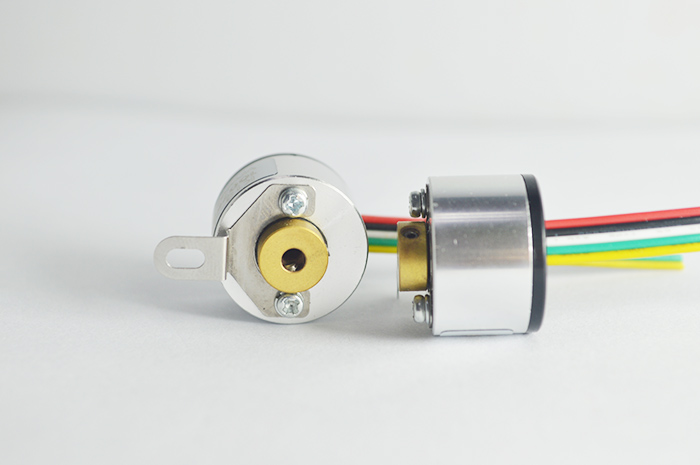

18mm Mini Incremental Encoder Output Type NPN 360ppr 8mm Shaft Rotary

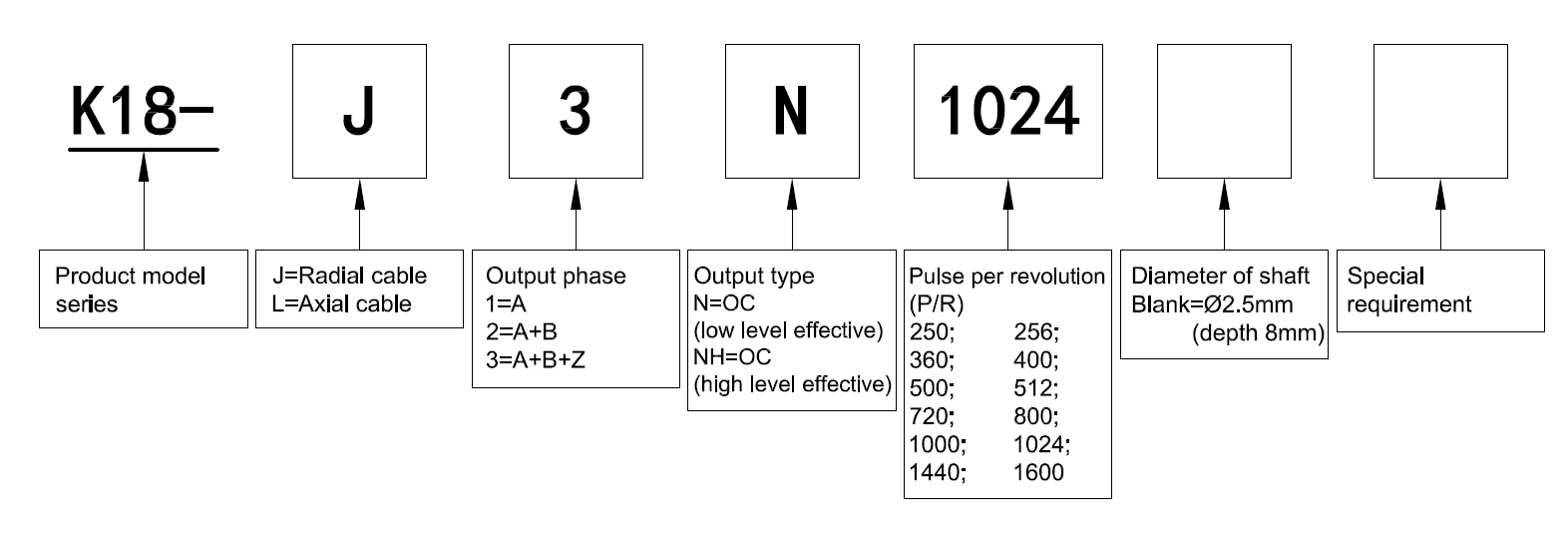

Model Selection Guide

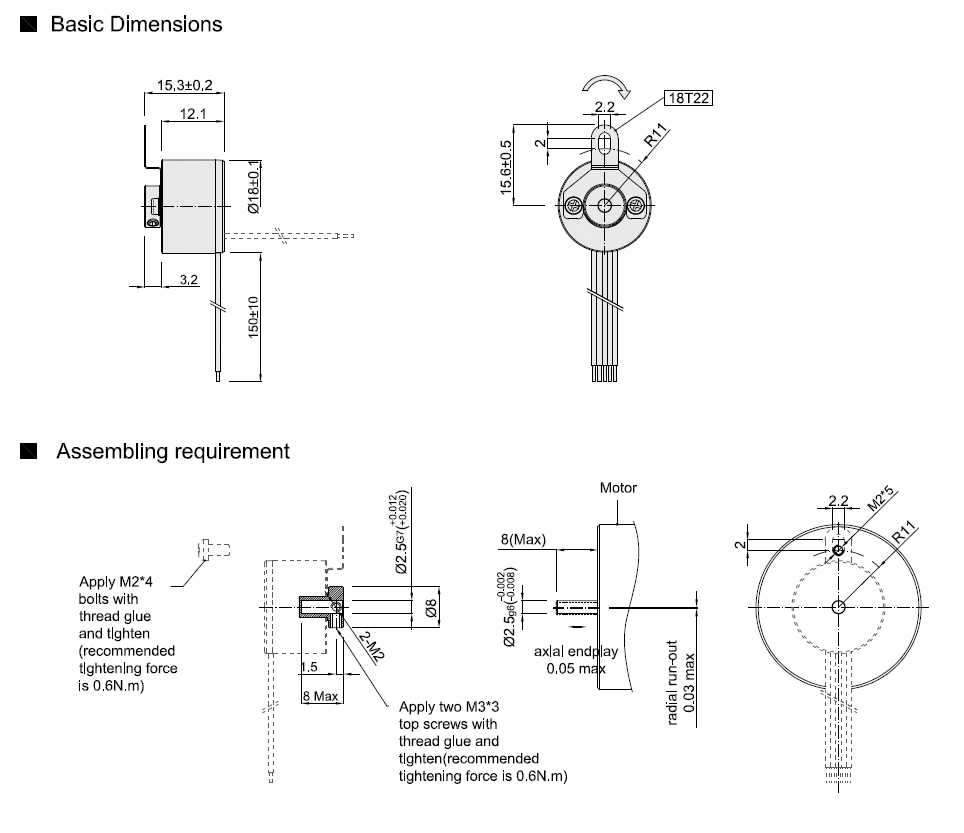

Manufacturing Dimensions
